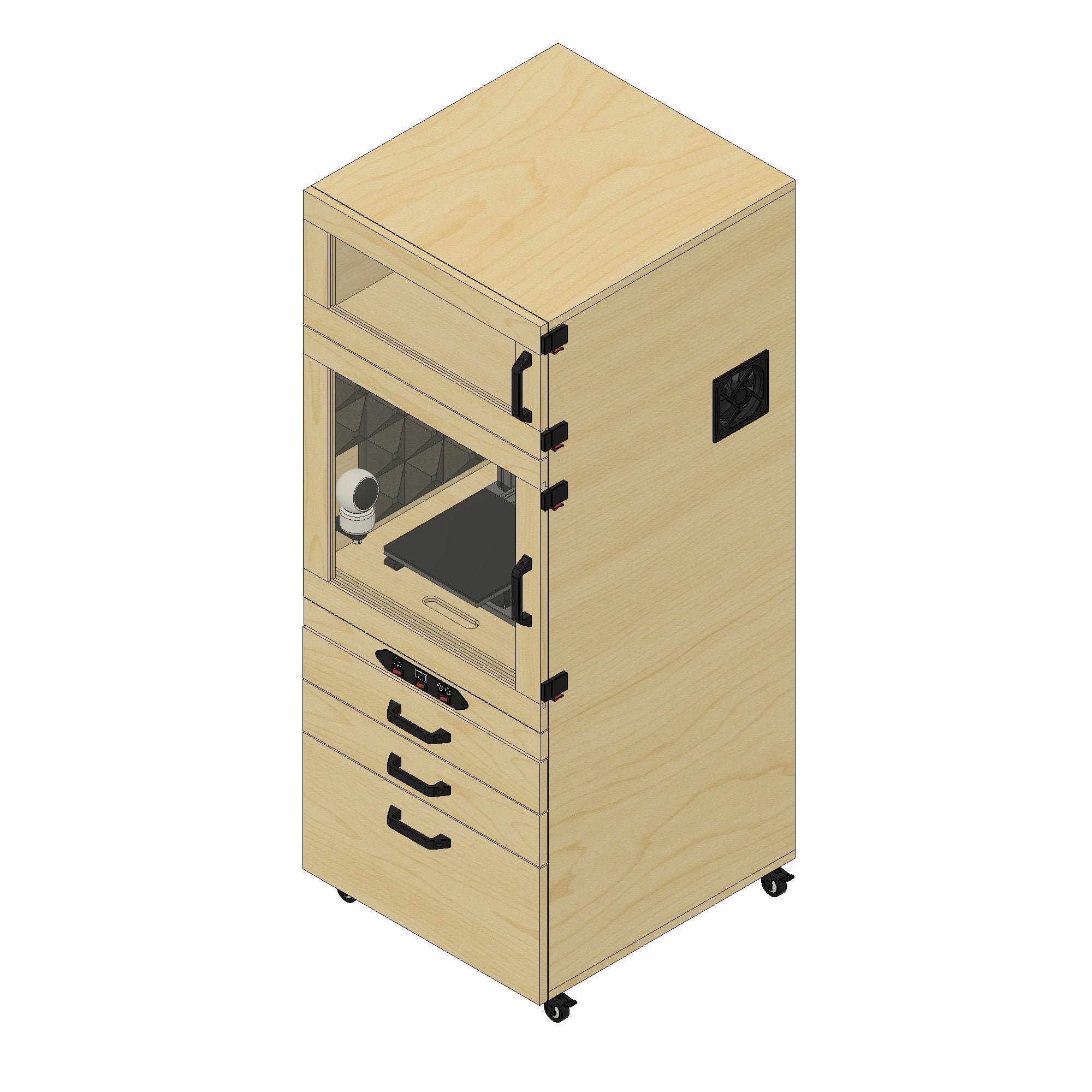

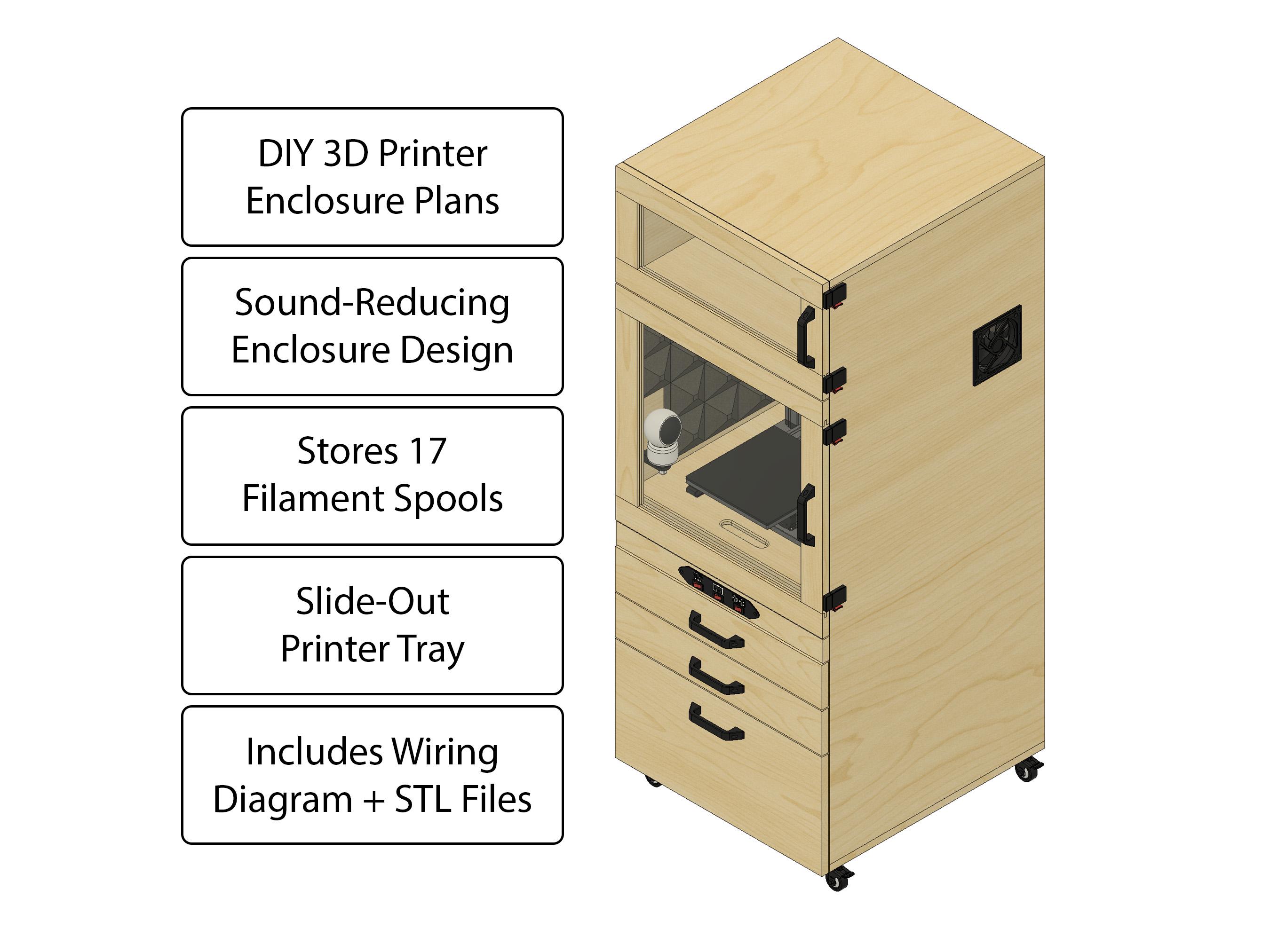

DIGITAL DOWNLOAD PLANS FOR 3D PRINTER MOBILE ENCLOSURE UNIT.
- Power Switch Control Panel (LED's, 3D Printer, WiFi Camera and Fans)

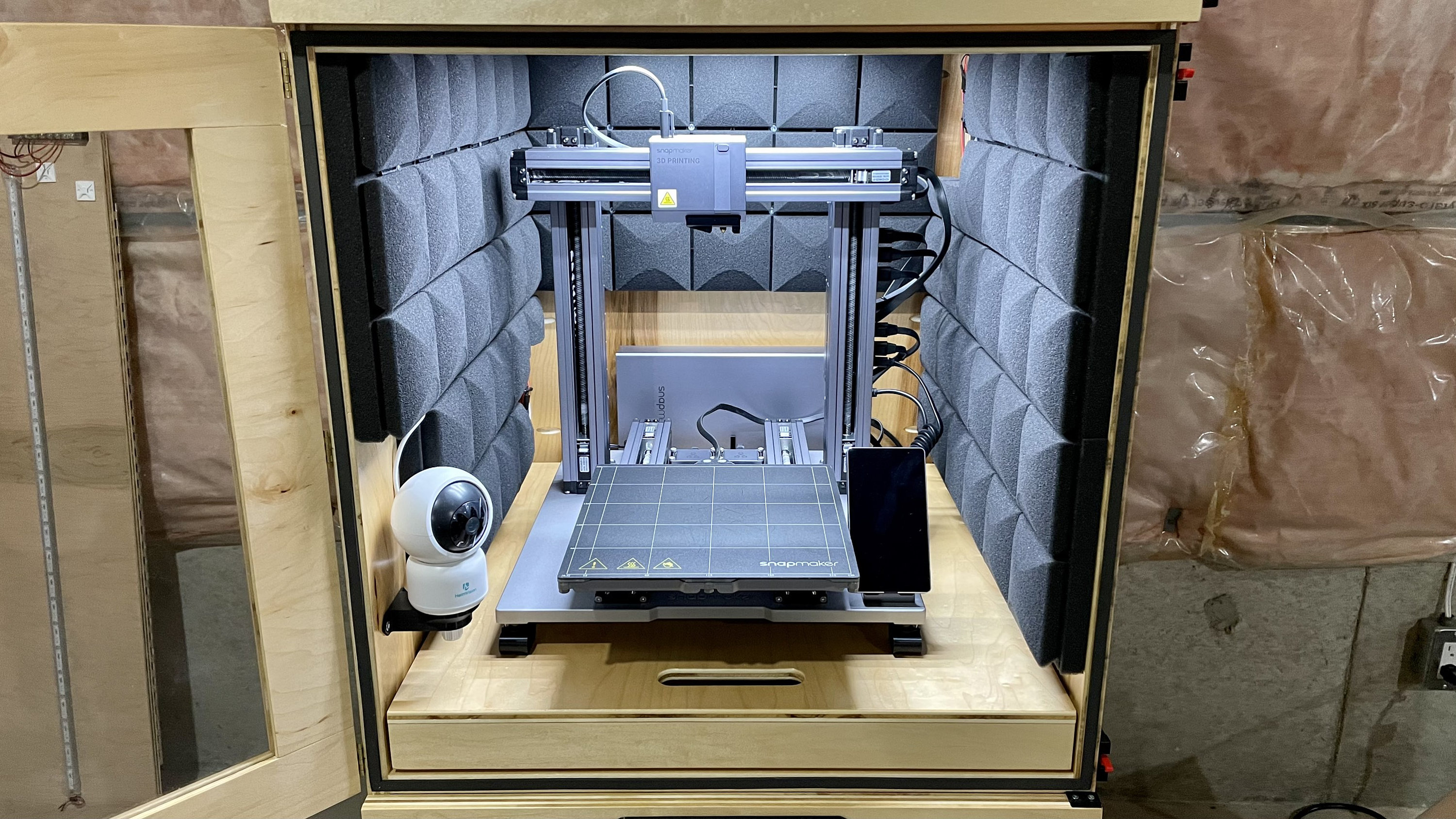

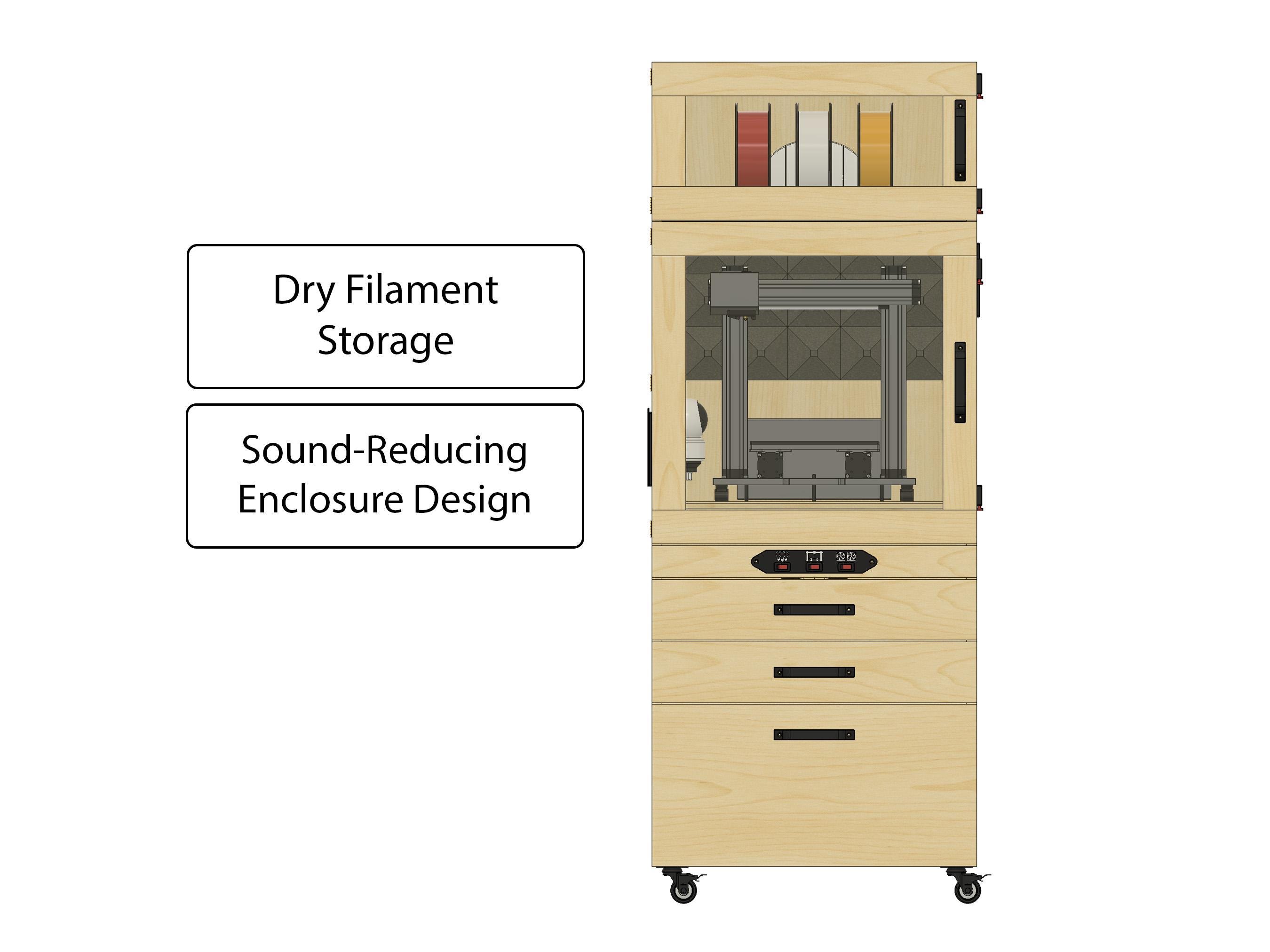

- Sound absorbing enclosure (quieter operation)

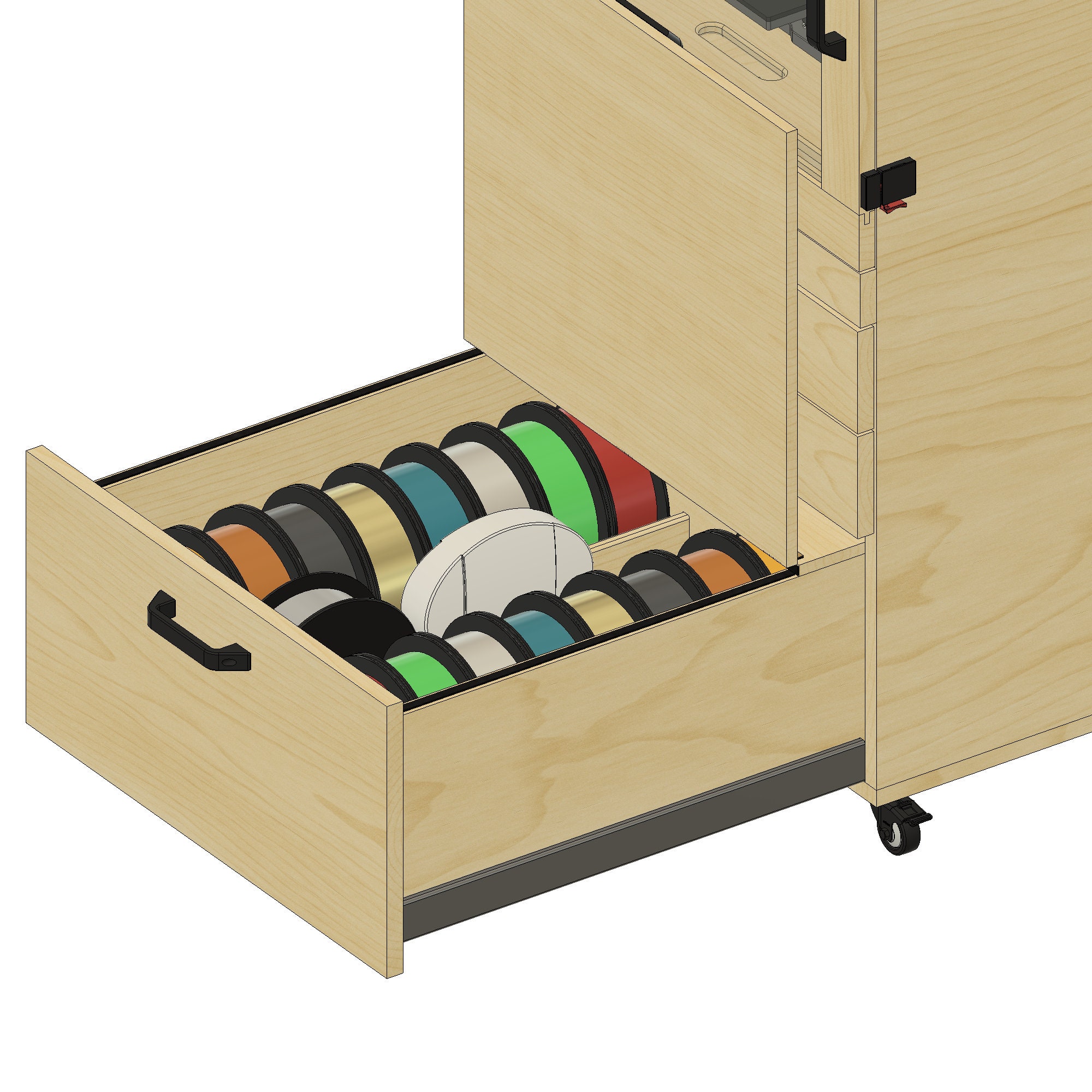

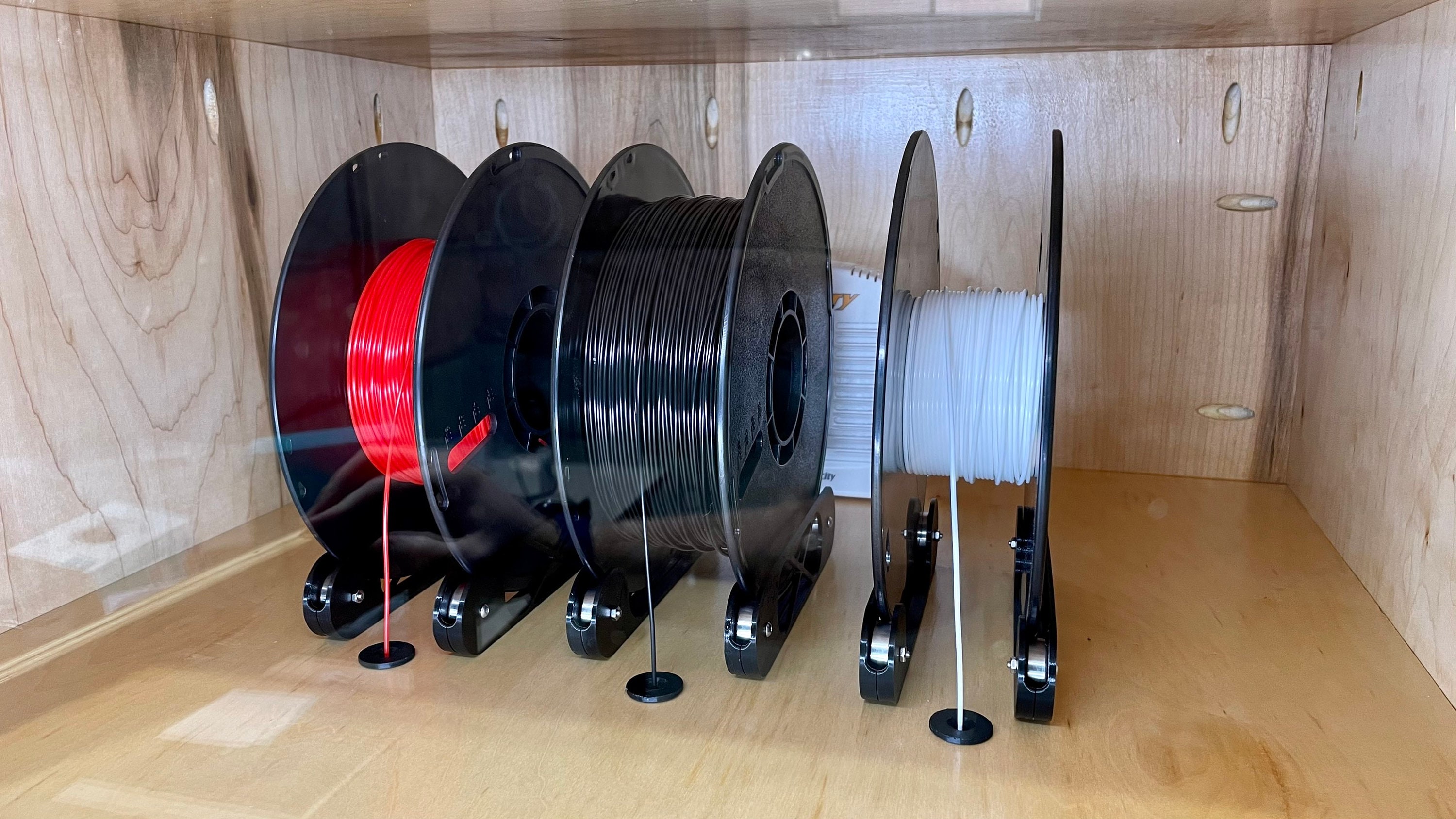

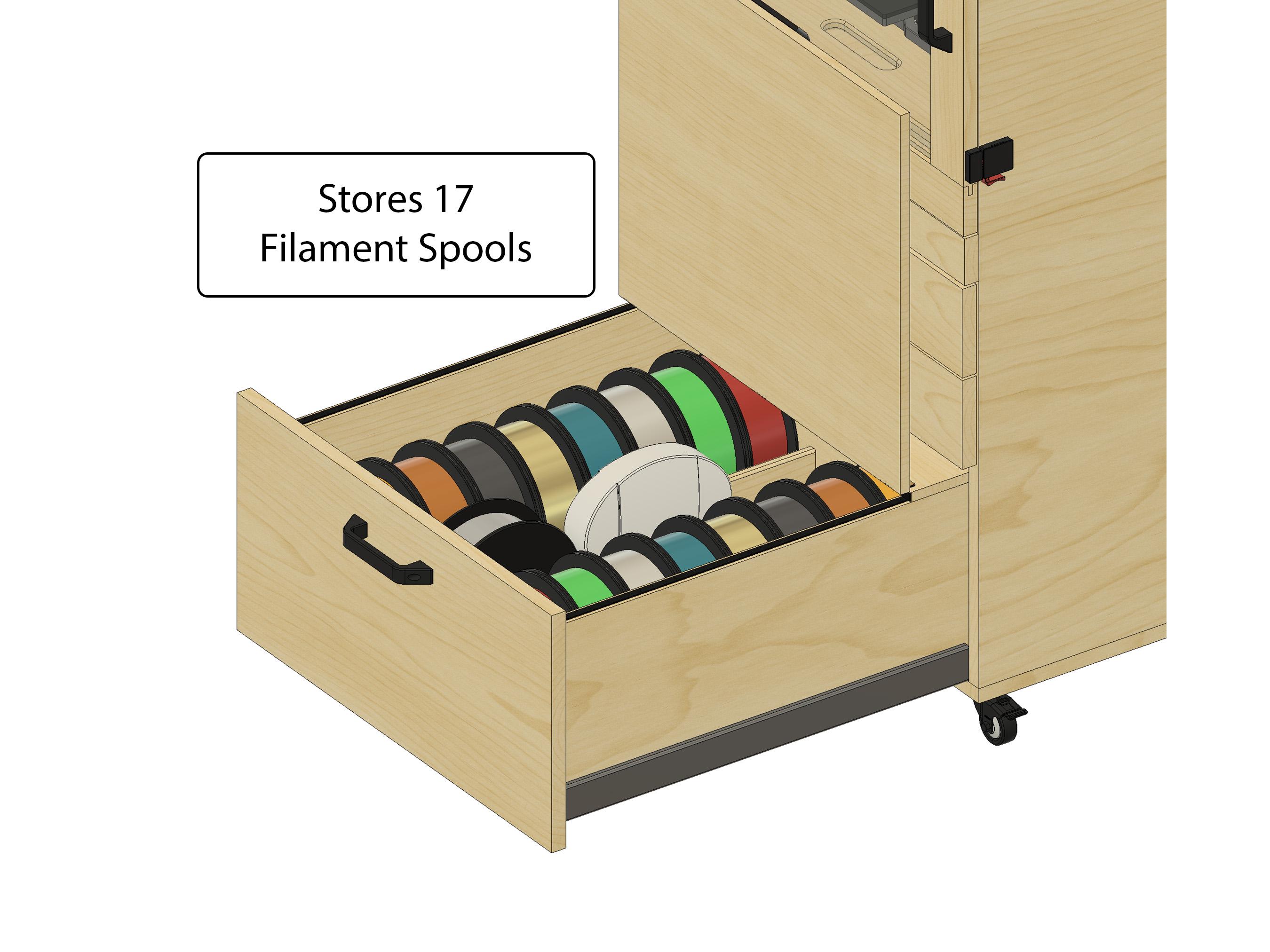

- Large Filament Storage (17 spools) and above loading section (3-5 spools)
- Moisture control using seals and dehumidifiers (filament lasts longer in storage and does not crack)
- 2 Large misc. storage drawers for tools, parts, etc.
- Mobile Unit that powers all devices off a single extension cord with concealed wiring

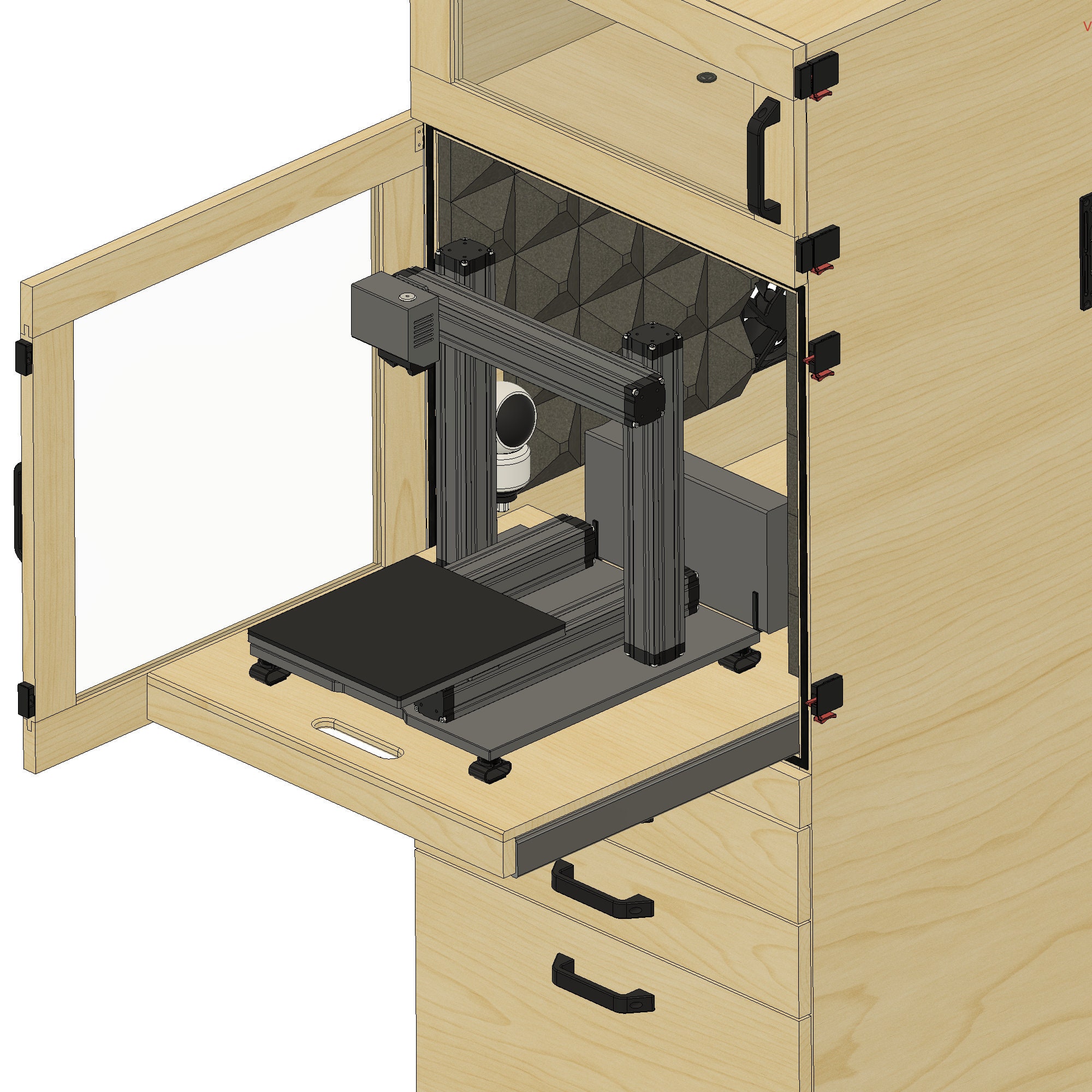

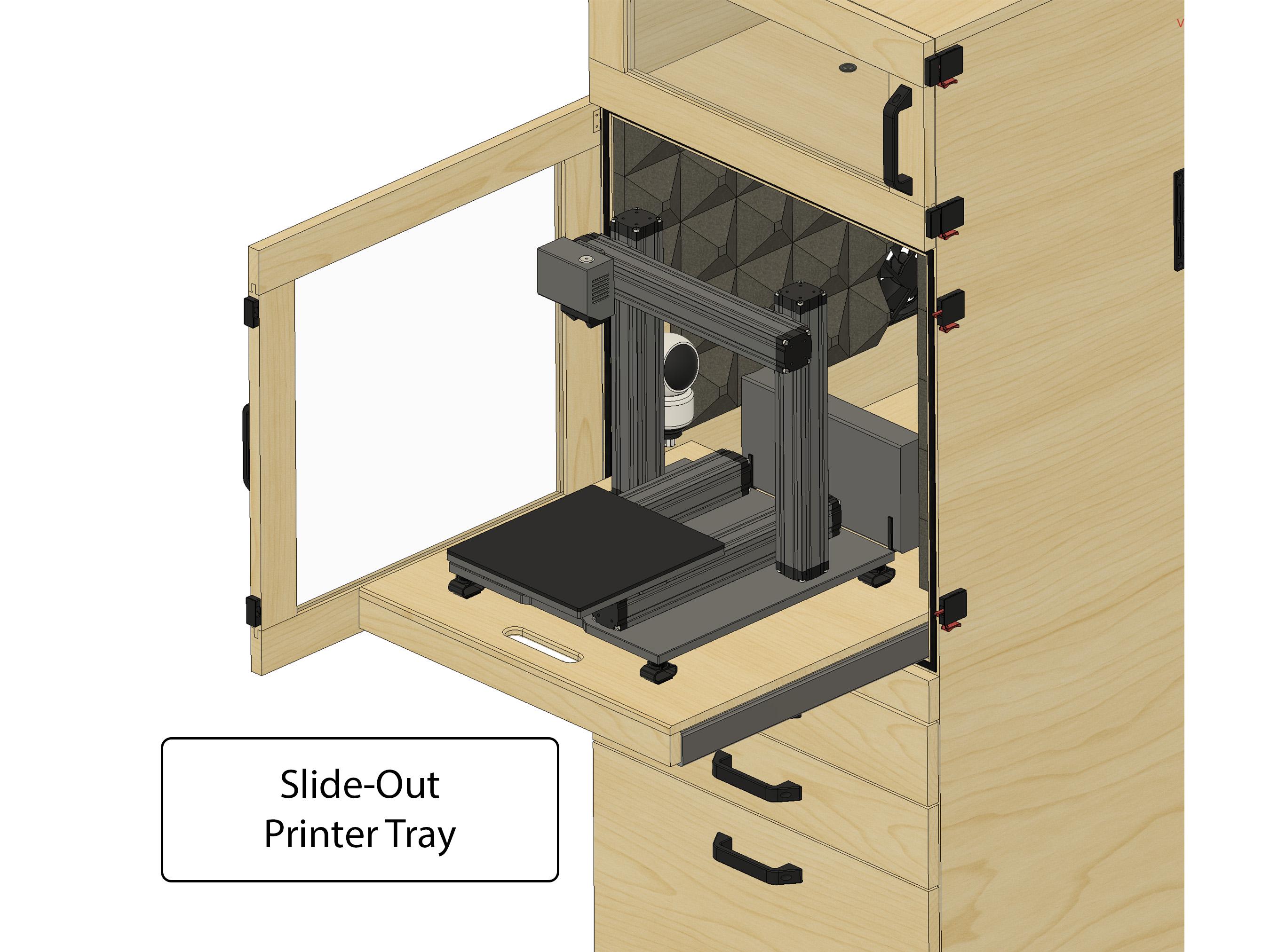

- Printer sits on a slide out drawer for easier maintenance and access to printer

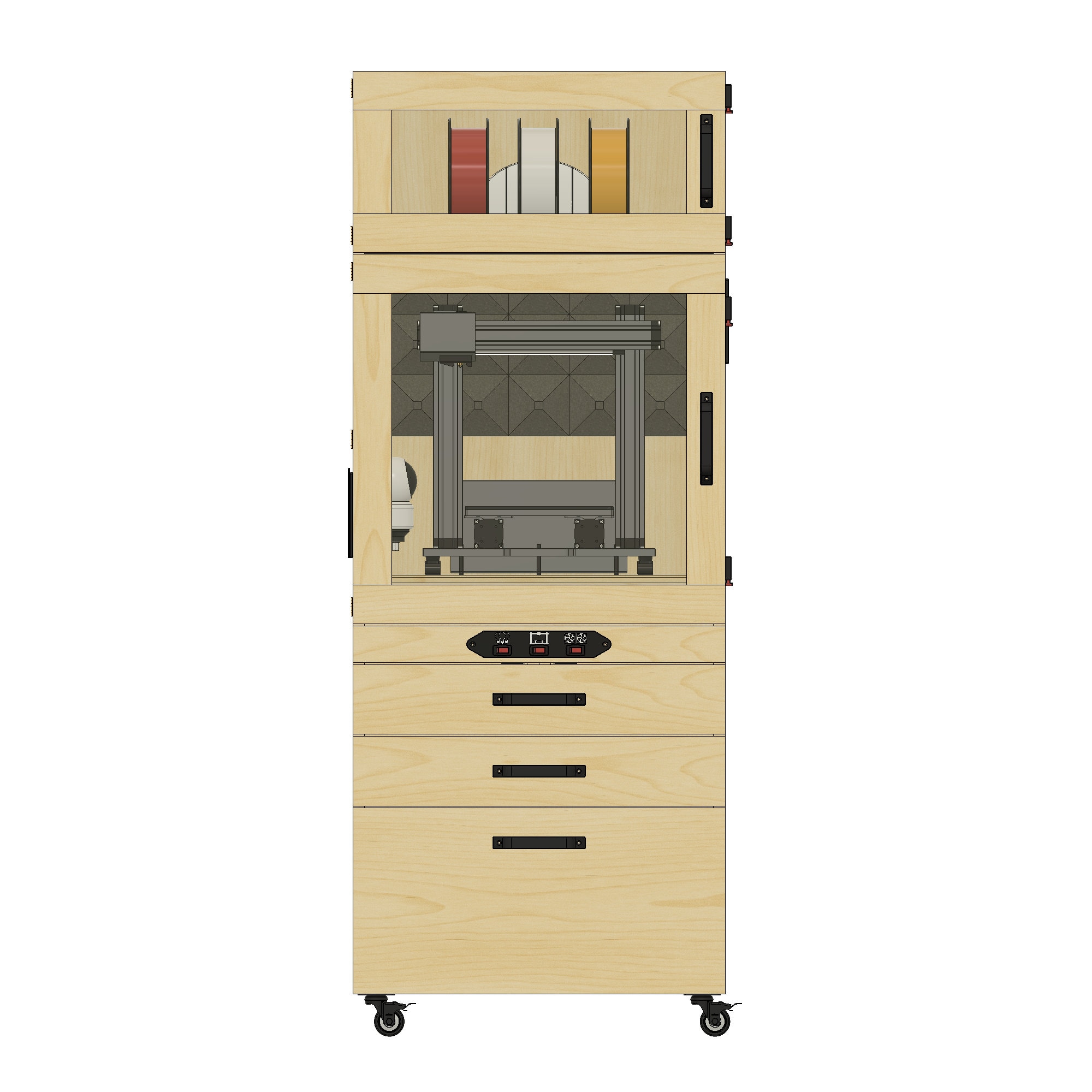

ENCLOSURE WAS DESIGNED TO FIT A SNAPMAKER 2.0 A250 BUT IT CAN ALSO FIT MANY OTHER 3D PRINTERS SUCH AS:
- Original Prusa i3 MK3S
- Creality Ender 3
- MMU2S

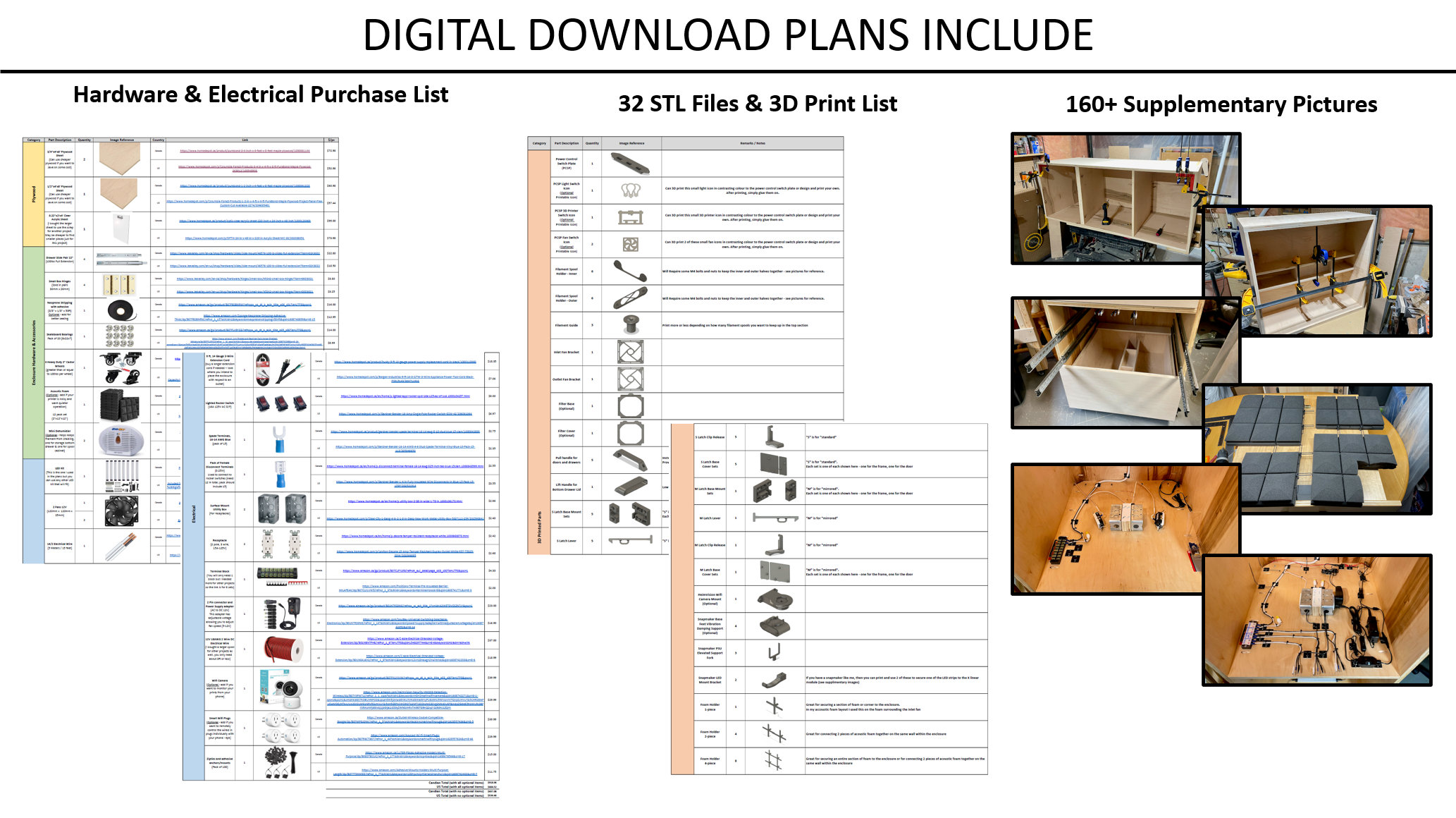

PLANS INCLUDE:
- 9 Detailed Assembly Drawings with Dimensions and Notes
- 4 Cut Sheet Layouts (cuts made from stock 4'x8' & 2'x4' sheets of plywood and acrylic)
- Hardware and Electrical part list
- 32 STL files and a 3D Print list
- Wiring Schematic (Detailed with pictures)
- More than 160 supplementary pictures of cutting, building, wiring, assembly, etc.

MATERIAL/PART COST:
- Approximately $700 CAD ($530 USD) depending on what type of plywood and acrylic you choose to use
- Approximately $200 CAD ($150 USD) in optional add-ons / accessories (WiFi camera, Mini Dehumidifier's, Acoustic Foam, Adhesive Foam Seal Stripping, etc.)

EXTERNAL DIMENSIONS (to know if this would fit in your workshop):
- The overall width is 24 inches.
- The overall depth is 25-7/8 inches.
- The overall height is about 59.5 inches (depends on the size of castor wheels you choose to put on the bottom).

INTERNAL DIMENSION (to know if your 3D printer would fit in this enclosure unit):
- Overall printer space available (including acoustic foam panels):
- Width: 19 inches
- Depth: 23 inches
- Height: 20 inches
- Should be able to easily fit an Original Prusa i3 Mk3S, Creality Ender 3 and MMU2S.
